SB
130

The rebel yell of the middle child. Fed a steady diet of super-tech climbs. The sb130 was built to crush the biggest terrain. No trail “too” anything. Point it up or down. Enter a last-minute enduro just for the eff of it. We say no one bike can rule all. But the sb130? One bike that rules.

LIfetime Warranty

Learn More

I just want to ride
as many new trails as I can.

Nate Hills
Around the White Mountain Turq
SB130 frame in raw carbon

f e a
t u r
e s

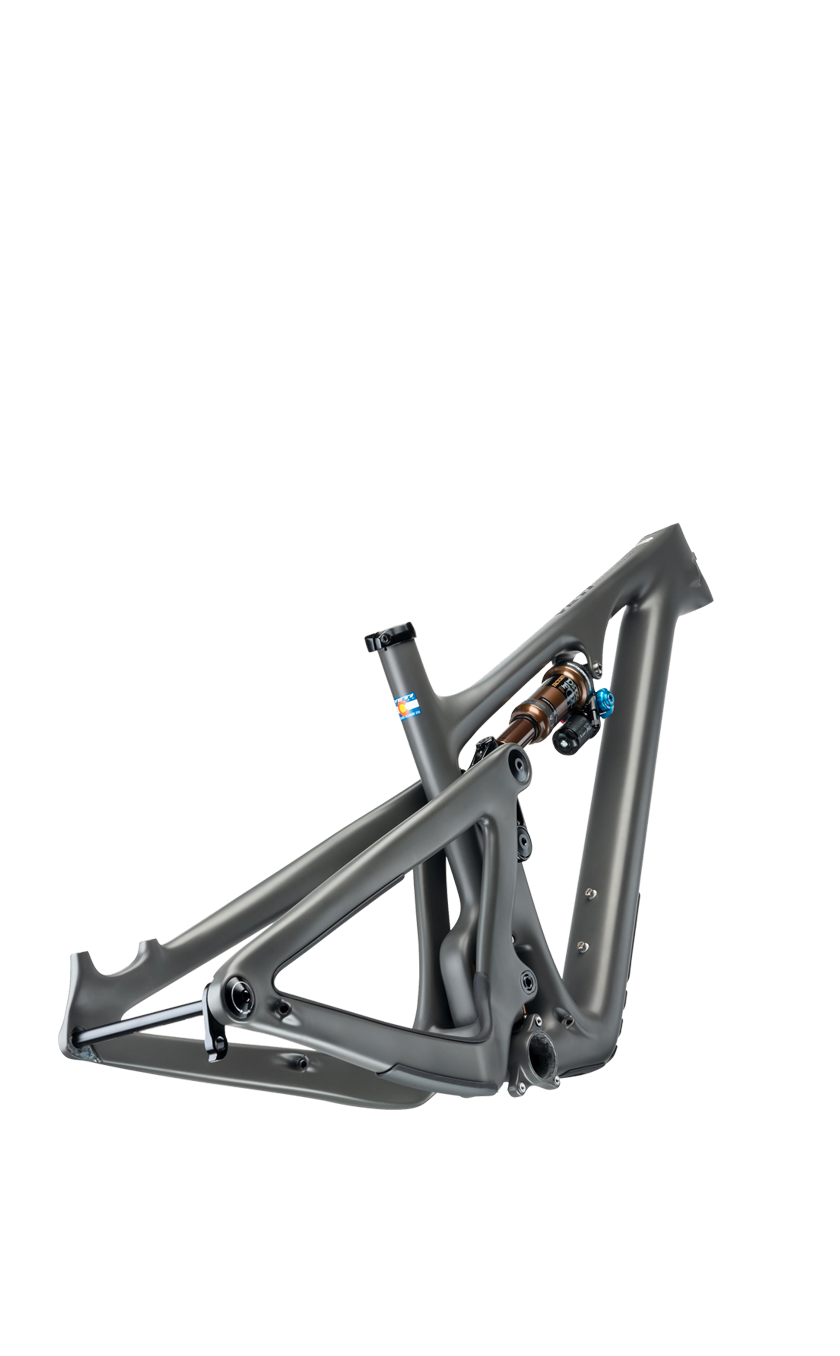

SB130 Frame in Anthracite

The SB130 possesses a
distinct, big mountain feel
for riders constantly exposed
to uncharted terrain

1
LONG REACH

Puts riders in a balanced position perfectly centered on the bike, ready to tackle the unknown.

2
150mm FORK

Because our 130mm of rear suspension outperforms similarly stroked forks and pairs well with our more forward biased position.

3
FRONT END DOESN'T WANDER CLIMBING

And stays composed when pointed downhill – the rider position remains neutral.

2020 Yeti SB130 Raw Frame

Low Slung.
Long Drop.

Long stroke dropper post capability throughout entire size range — for greater agility.

Around the White Mountain
At home
When
You're Not.

The deeper you go, the higher you climb, the later you brake, the more comfortable SB130 becomes. Bottom line, the term “trail bike” gets used pretty liberally at Yeti.

SB130 Raw Carbon Frame

A shock tune unique,
to the SB130.

Leverage Rate

The patented Switch Infinity has been laid out to have supple small bump compliance but ramp up quicker in the mid-stroke while still allowing for bottom-out control with a 12% progressive leverage ratio.

SB130 Ride Feel Chart

Feel.

Big mountain feel, capable, lively, with a centered rider position.

Balance.
Achieved.

Refined for the unknown and everything in between the SB130's Switch Infinity provides more progressive ride without effecting the anti-squat properties.

Anti-Squat

Across our line, we have chosen a relatively flat and high anti-squat curve in beginning and mid-section of travel where pedaling commonly occurs a.k.a the pedaling zone. This creates an efficient pedaling platform through your entire pedaling zone, there is an inflection point where the Switch Infinity link moves down, dropping the anti-squat drastically. Riders are typically not pedaling in this zone, so chain forces have less of an effect on the suspension performance. Decoupling of the chain forces allows the suspension to work more efficiently to absorb impacts making the feel of a Yeti distinct.

100% Anti-Squat
Anti-Squat
Sag Inflection Point Pedaling Zone
0 32.5 65 97.5 130 Vertical Wheel Travel
SB130 Raw Carbon Frame Detail
SILENCE IS TURQ

Internally routed cable tubes from end to end for silent function. And less translation of housing during suspension movement.

SB130 Mount Blanc

Quiet Riot.

The hum of tires gripping dirt - the only approved sound on a YETI.

Build Kits

T3

$8,199

TLR

$7,599

T2

$7,299

T1

$6,799

C2

$5,999

CLR

$5,499

C1

$5,399

Frame Only

$3,499
Details T3, TURQ series carbon, SRAM XX1 Eagle, Fox Factory Fit 4 36 ForkTLR, TURQ series carbon, SRAM X01 Eagle, Fox Factory Grip 2 36 ForkT2, TURQ series carbon, SRAM X01 Eagle, Fox Factory Fit 4 36 ForkT1, TURQ series carbon, Shimano XT, Fox Factory Fit 4 36 ForkC2, C series carbon, SRAM X01 Eagle, Fox Performance 36 ForkCLR, C series carbon, SRAM GX Eagle, Fox Performance 36 ForkC1, C series carbon, SRAM GX Eagle, Fox Performance 36 Fork
Frame TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork FOX FACTORY FIT 4 36/150MMFOX FACTORY GRIP 2 36/160MMFOX FACTORY FIT 4 36/150MMFOX FACTORY FIT 4 36/150MMFOX PERFORMANCE 36/150MMFOX PERFORMANCE 36/160MMFOX PERFORMANCE 36/150MM
Material TURQ SERIESTURQ SERIESTURQ SERIESTURQ SERIESC/SERIESC/SERIESC/SERIESTURQ SERIES
Weight 29.38 LBS30.7 LBS29.6 LBS30.1 LBS30.38 LBS31.48 LBS30.63 LBS6.90 LBS
Travel 130MM (5.1")137MM (5.4")130MM (5.1")130MM (5.1")130MM (5.1")137MM (5.4")130MM (5.1")130MM (5.1")
Rear Shock FOX FACTORY DPX2, 210 x 52.5MMFOX FACTORY DPX2, 210 x 55MMFOX FACTORY DPX2, 210 x 52.5MMFOX FACTORY DPX2, 210 x 52.5MMFOX PERFORMANCE DPX2, 210 x 52.5MMFOX PERFORMANCE DPX2, 210 x 55MMFOX PERFORMANCE DPX2, 210 x 52.5MMFOX FACTORY DPX2, 210 x 55MM
Wheelset DT SWISS M1700 30MMDT SWISS CUSTOM EX1700 30MMDT SWISS M1700 30MMDT SWISS M1700 30MMDT SWISS M1700 30MMDT SWISS E1900 30MMDT SWISS M1900 30MM
Rear Der SRAM XX1 EAGLESRAM X01 EAGLESRAM X01 EAGLESHIMANO XTSRAM X01 EAGLESRAM GX EAGLESRAM GX EAGLE
Shift SRAM XX1 EAGLESRAM X01 EAGLESRAM X01 EAGLESHIMANO XTSRAM GX EAGLESRAM GX EAGLESRAM GX EAGLE
Crank SRAM X01 EAGLE 30T 170MMSRAM X1 EAGLE 30T 170MMSRAM X1 EAGLE 30T 170MMSHIMANO XT 30T 170MMSRAM X1 EAGLE 30T 170MMSRAM GX EAGLE 30T 170MMSRAM GX EAGLE 30T 170MM
BB SRAM DUB BB92SRAM DUB BB92SRAM DUB BB92SHIMANO BB92SRAM DUB BB92SRAM DUB BB92SRAM DUB BB92
Cassette SRAM XX1 EAGLE 1299 10-50SRAM X01 EAGLE 1295 10-50SRAM X01 EAGLE 1295 10-50SHIMANO XT 10-51SRAM GX EAGLE 1275 10-50SRAM GX EAGLE 1275 10-50SRAM GX EAGLE 1275 10-50
Chain SRAM XX1 EAGLESRAM GX EAGLESRAM GX EAGLESHIMANO XTSRAM GX EAGLESRAM GX EAGLESRAM GX EAGLE
Brakes SRAM G2 RSCSRAM CODE RSCSRAM G2 RSCSHIMANO XT 4 PISTONSRAM G2 RSCSRAM CODE RSRAM GUIDE R
Rotors SRAM CENTERLINE 180/180SRAM CENTERLINE 200/180SRAM CENTERLINE 180/180SHIMANO 180/180SRAM CENTERLINE 180/180SRAM CENTERLINE 200/180SRAM CENTERLINE 180/180
Post FOX TRANSFER FACTORY 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MMFOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Front Tire MAXXIS MINION DHF 2.5 EXOMAXXIS MINION DHF 2.5 EXO+MAXXIS MINION DHF 2.5 EXOMAXXIS MINION DHF 2.5 EXOMAXXIS MINION DHF 2.5 EXOMAXXIS MINION DHF 2.5 EXO+MAXXIS MINION DHF 2.5 EXO
Rear Tire MAXXIS AGGRESSOR 2.3 EXOMAXXIS MINION DHR II 2.4 EXO+MAXXIS AGGRESSOR 2.3 EXOMAXXIS AGGRESSOR 2.3 EXOMAXXIS AGGRESSOR 2.3 EXOMAXXIS MINION DHR II 2.4 EXO+MAXXIS AGGRESSOR 2.3 EXO
Headset CANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATEDCANE CREEK 40 INTEGRATED
Bar YETI CARBON 35X780MMYETI CARBON 35X800MMYETI CARBON 35X780MMYETI CARBON 35X780MMRACE FACE AEFFECT R 35X780MMRACE FACE AEFFECT R 35X780MMRACE FACE AEFFECT R 35X780MM
Stem RACE FACE TURBINE 35X50MMRACE FACE TURBINE 35X50MMRACE FACE TURBINE BASIC 35X50MMRACE FACE TURBINE BASIC 35X50MMRACE FACE RIDE 35X50MMRACE FACE RIDE 35X50MMRACE FACE RIDE 35X50MM
Grips ODI ELITE PROODI ELITE PROODI ELITE PROODI ELITE PROODI ELITE PROODI ELITE PROODI ELITE PRO
Seat WTB VOLT CUSTOMWTB VOLT CUSTOMWTB VOLT CUSTOMWTB VOLT CUSTOMWTB VOLT CUSTOMWTB VOLT CUSTOMWTB VOLT CUSTOM

Infinite
Suspension
Capabilities

At the heart of the SB130 suspension design is our patented Switch Infinity suspension system. Switch Infinity utilizes a patented translating pivot that switches direction as the bike moves through its travel providing excellent anti-squat characteristics.

Explore

Geometry

in mm
SM MD LG XL
A SEAT TUBE LENGTH 15.0 16.1 17.7 19.5
B TOPTUBE LENGTH 22.5 23.7 24.6 25.7
C HEADTUBE ANGLE 65.5 65.5 65.5 65.5
D EFF. SEAT TUBE ANGLE 77.1 77.0 76.9 76.9
E CHAINSTAY LENGTH 17.0 17.0 17.0 17.0
F WHEELBASE 46.2 47.5 48.4 49.6
G ESTIMATED BB HEIGHT 13.3 13.3 13.3 13.3
H STANDOVER 28.5 28.6 28.7 28.8
I HEADTUBE LENGTH 3.7 3.9 4.3 4.8
J AXLE TO CROWN 21.9 21.9 21.9 21.9
K OFFSET 1.7 1.7 1.7 1.7
L STACK 24.1 24.2 24.6 25.0
M REACH 16.9 18.1 18.9 19.9
N FRONT CENTER 29.2 30.4 31.4 32.5
SB130 Geometry

Fit Guide

  • sm
    5’1” - 5’7”
  • md
    5’5” - 5’11”
  • lg
    5’10” - 6’3”
  • xl
    6’1” - 6’7”

Carbon
Layup

Made with the highest quality carbon fiber available, TURQ series bikes offer the perfect balance of stiffness and compliance.

Explore

Support

Built For
Life. No BS.
No Fine Print.

Register
2020 Yeti SB130 Turq frame in Turquoise

Lifetime Warranty

The SB130 frame and Switch Infinity link are covered by a Lifetime Warranty. You CAN race, jump, ford streams, shred the gnar or ride it hard. Don't worry, you don't need a lawyer to decipher how it works.
