ARC

THE ARC IS BACK. CONJURING UP ALL THE NOSTALGIA, HOOTS AND HOLLARS FROM YESTERYEAR. IT’S YOUR INSTANT-FEEDBACK STEED FOR ANY TRAIL. SHOW IT YOUR SINGLETRACK, PUMP TRACK AND YOUR BIKEPACK ROUTE TOO. IT’S GOT HISTORY TO LIVE UP TO AND NEW HISTORY TO MAKE. AND IT’S ALREADY IMPATIENT.

ARC

LIfetime Warranty

Learn More

Nothing is more
fun than going
full blast.

Joey Schusler

f e a
t u r
e s

Not your hardtail from yesteryear.

SECURED FOR SPEED.

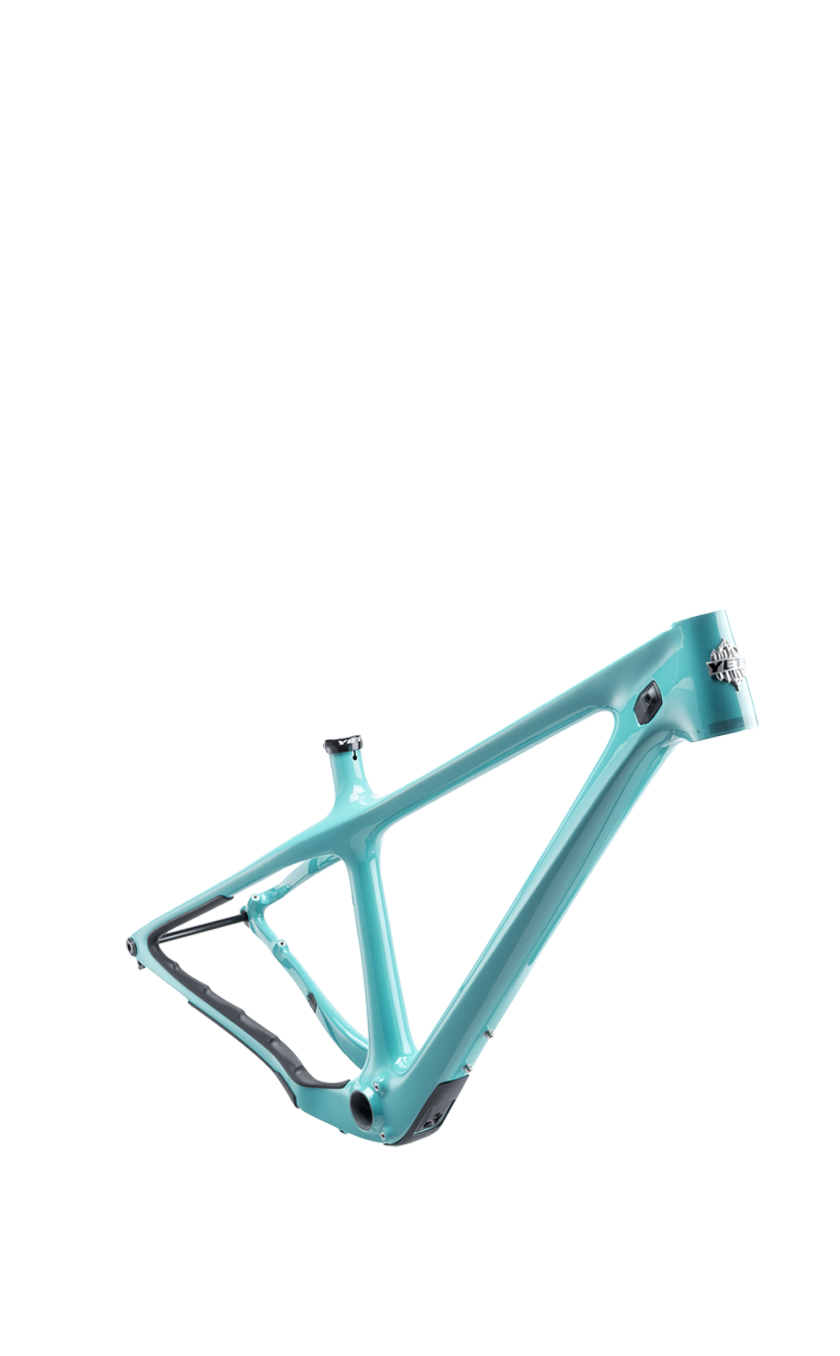

While the ARC has roots back to the beginning of mountain biking, this frame is anything but a nostalgic blast from the past. If you run a chain guide, the ARC has integrated ISCG 05 tabs.

SUMMIT PEAKS.
MAKE SHAPES.

A modern approach to hardtail geometry, without losing traction in the rear: riders have plenty of room to maneuver and respond to trail feedback without being too stretched out.

Far beyond a juiced up thorough-bred XC race bike, the ARC is built around a 130mm fork for a massively capable trail bike.

The Sounds
of Silence.

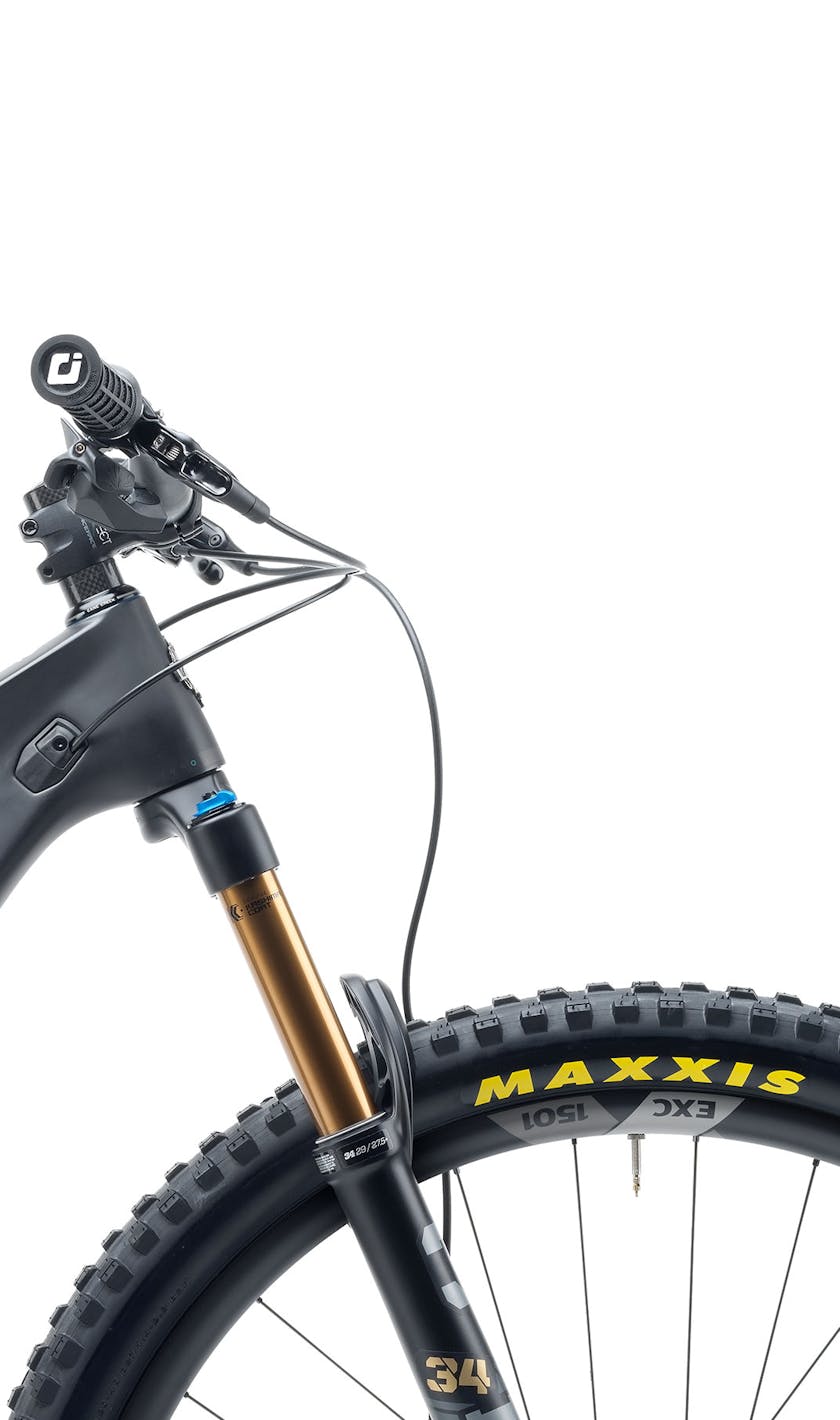

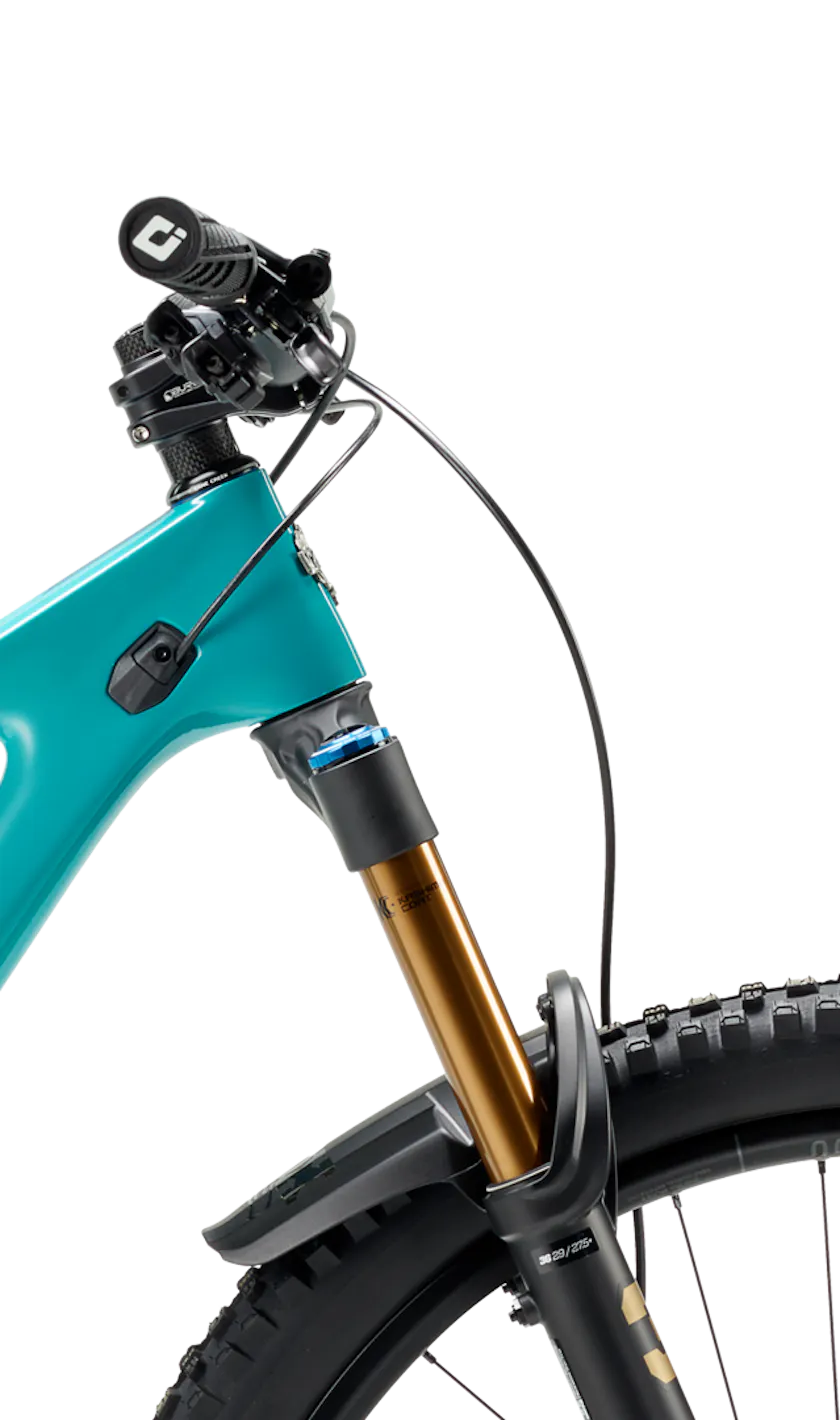

Internally routed cable tubes with secure closures at entry and exit points make rattles a thing of the past. And an all new chain slap protector virtually eliminates that chain on rubber sound, maintaining the serenity of the adventure.

Feel

Spry, stiff, light, fast, fun as hell.

DUAL SIDED DOWNTUBE MOUNTS.

For going deeper. Riding longer. Carrying that thing you wish you brought on your last trip.

FULL-STROKE
DROPPERS
ENCOURAGED.

If a 200mm drop is your thing, you’ll still have room to spare.

PUT THE
POWER DOWN.

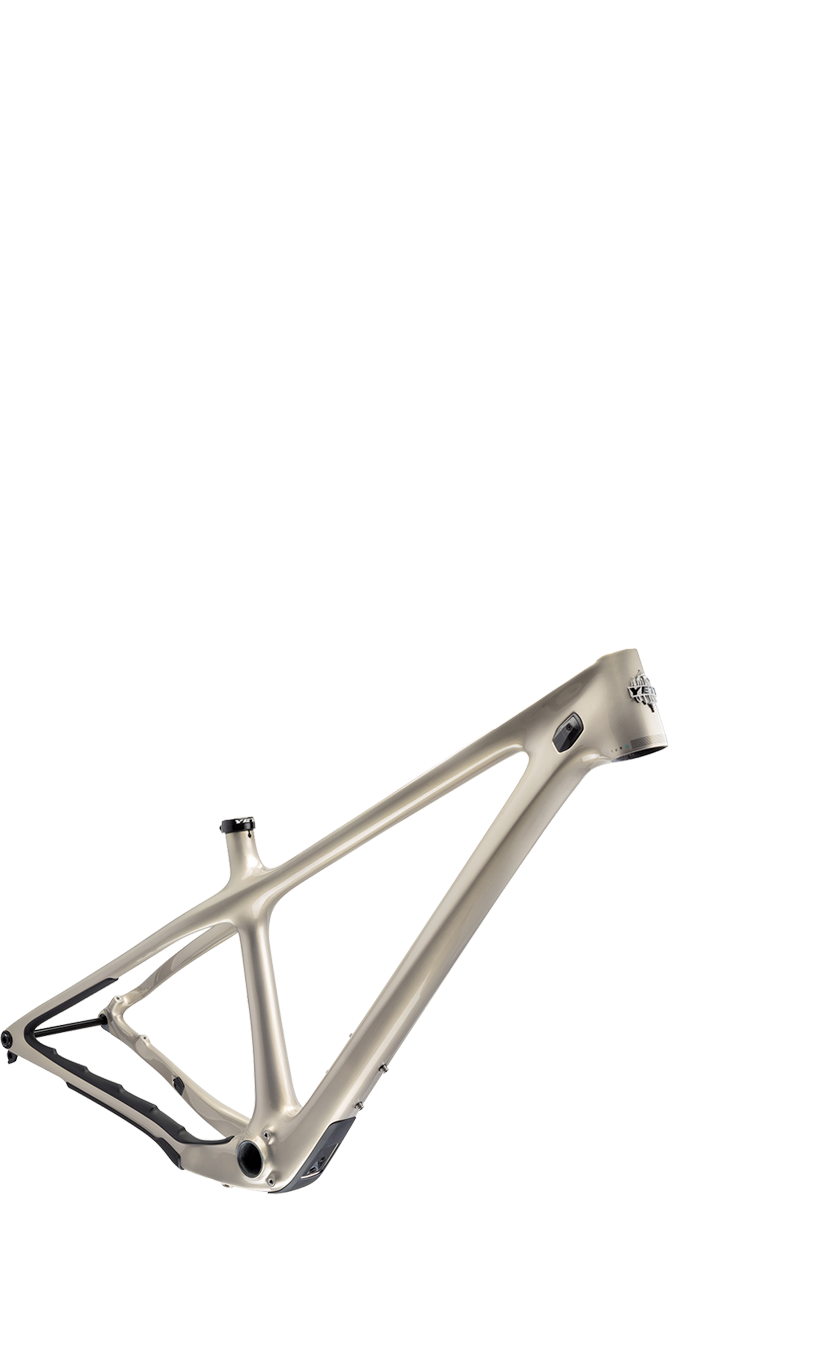

The downtube, seat tube and chainstays flow into each other for a stiff and direct feel.

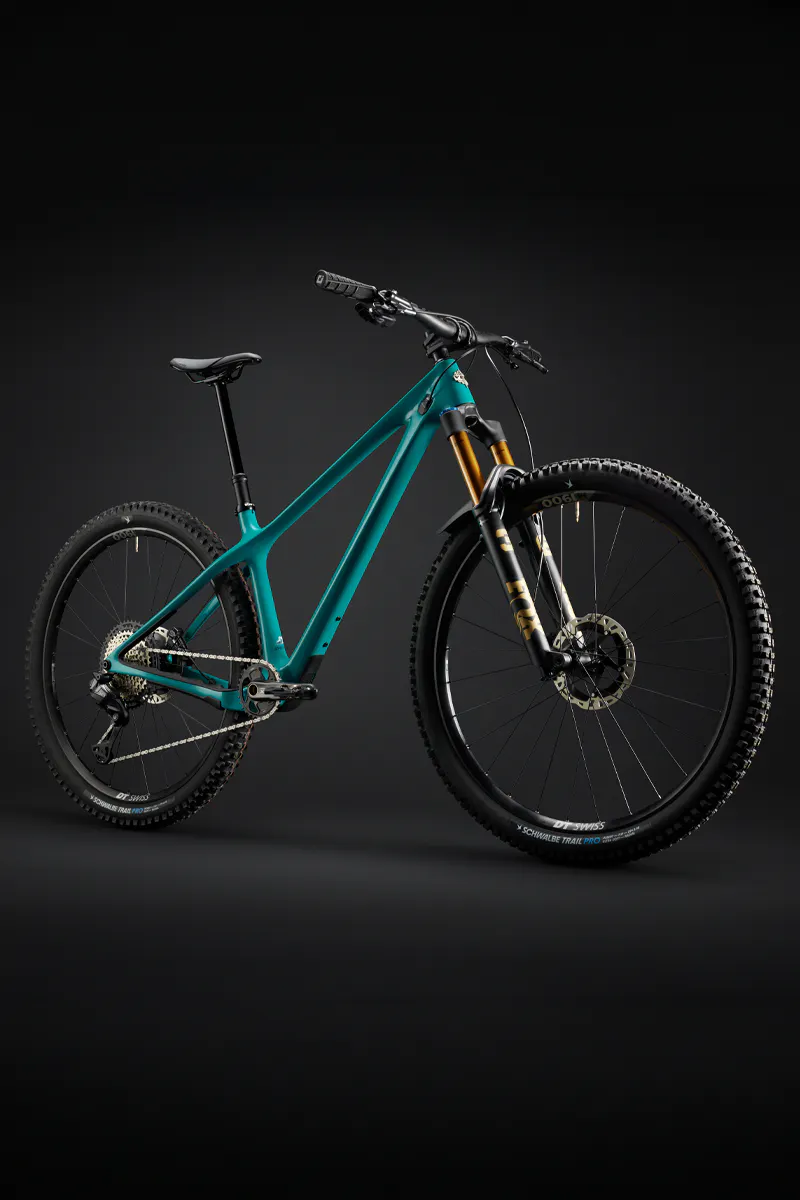

Build Kits

	T3 $6,800	T2 $5,700	T1 $5,100	C2 $3,900	C1 $3,600	Frame Only $1,900
Details	T3, TURQ series carbon, SRAM XX1 Eagle, Fox Factory 34 Fork	T2, TURQ series carbon, SRAM X01 Eagle, Fox Factory 34 Fork	T1, TURQ series carbon, Shimano XT, Fox Factory 34 Fork	C2, TURQ series carbon, SRAM GX Eagle, Fox Performance 34 Fork	C1, TURQ series carbon, Shimano SLX, Fox Performance 34 Fork	TURQ series carbon

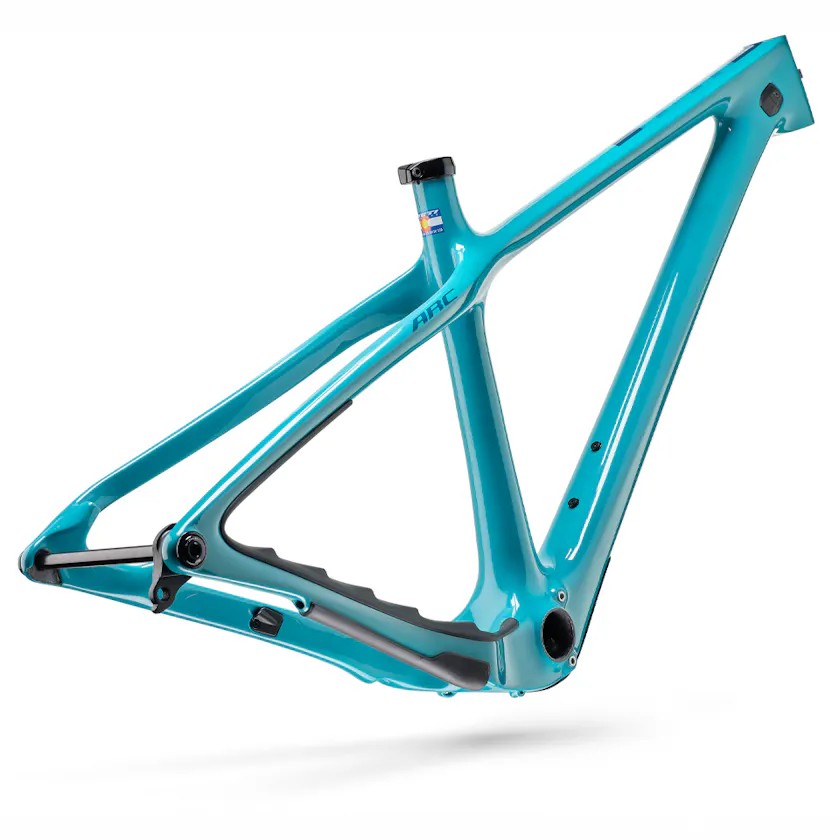

Frame	TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.
Fork	FOX FACTORY 34 FIT4/130MM	FOX FACTORY 34 FIT4/130MM	FOX FACTORY 34 FIT4/130MM	FOX PERFORMANCE 34/130MM	FOX PERFORMANCE 34/130MM
Material	TURQ SERIES	TURQ SERIES	TURQ SERIES	TURQ SERIES	TURQ SERIES	TURQ SERIES
Weight	24.00 LBS	24.32 LBS	25.00 LBS	26.53 LBS	26.66 LBS	2.82 LBS
Travel	HARDTAIL	HARDTAIL	HARDTAIL	HARDTAIL	HARDTAIL	HARDTAIL
Rear Shock	LEGS	LEGS	LEGS	LEGS	LEGS
Wheelset	DT SWISS XM1700 30MM	DT SWISS XM1700 30MM	DT SWISS XM1700 30MM	DT SWISS M1900 30MM	DT SWISS M1900 30MM
Rear Der	SRAM XX1 EAGLE	SRAM X01 EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
Shift	SRAM XX1 EAGLE	SRAM X01 EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
Crank	SRAM XX1 EAGLE 32T 170MM	SRAM X1 EAGLE 32T 170MM	SHIMANO XT 32T 170MM	SRAM GX EAGLE 32T 170MM	SHIMANO SLX 32T 170MM
BB	SRAM DUB BB92	SRAM DUB BB92	SHIMANO XT BB92	SRAM DUB BB92	SHIMANO XT BB92
Cassette	SRAM XX1 EAGLE 1299 10-52	SRAM X01 EAGLE 1295 10-52	SHIMANO XT 10-51	SRAM GX EAGLE 1275 10-52	SHIMANO SLX 10-51
Chain	SRAM XX1 EAGLE	SRAM GX EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
Brakes	SRAM LEVEL ULTIMATE	SRAM LEVEL TLM	SHIMANO XT 2 PISTON	SRAM LEVEL TL	SHIMANO DEORE 2 PISTON
Rotors	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SHIMANO 180/SHIMANO 180	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SHIMANO 180/SHIMANO 180
Post	FOX TRANSFER FACTORY 31.6MM / 175MM	FOX TRANSFER 31.6MM / 175MM	FOX TRANSFER 31.6MM / 175MM	FOX TRANSFER 31.6MM / 175MM	FOX TRANSFER 31.6MM / 175MM
Front Tire	MAXXIS MINION DHF 2.6 EXO	MAXXIS MINION DHF 2.6 EXO	MAXXIS MINION DHF 2.6 EXO	MAXXIS MINION DHF 2.6 EXO	MAXXIS MINION DHF 2.6 EXO
Rear Tire	MAXXIS REKON 2.6 EXO	MAXXIS REKON 2.6 EXO	MAXXIS REKON 2.6 EXO	MAXXIS REKON 2.6 EXO	MAXXIS REKON 2.6 EXO
Headset	CANE CREEK 110 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED
Bar	YETI CARBON 35X760MM	YETI CARBON 35X760MM	YETI CARBON 35X760MM	RACE FACE AEFFECT R 35X760MM	RACE FACE AEFFECT R 35X760MM
Stem	RACE FACE TURBINE R 35X50MM	RACE FACE AEFFECT R 35X50	RACE FACE AEFFECT R 35X50	RACE FACE RIDE 35X50MM	RACE FACE RIDE 35X50MM
Grips	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO
Seat	ERGON SADDLE	SILVERADO CUSTOM	SILVERADO CUSTOM	SILVERADO CUSTOM	SILVERADO CUSTOM

Geometry

in mm

		SM	MD	LG	XL
A	WHEEL SIZE	29.0	29.0	29.0	29.0
B	REACH	16.5	17.5	18.3	19.3
C	EFFECTIVE TOP TUBE LENGTH	22.7	23.8	24.6	25.7
D	Stack	24.9	25.2	25.4	25.8
E	HEADTUBE LENGTH	3.7	4.1	4.3	4.7
F	SEAT TUBE LENGTH	15.0	16.1	17.7	19.5
G	EFF. SEAT TUBE ANGLE	76.0	76.0	76.0	76.0
H	HEADTUBE ANGLE	67.0	67.0	67.0	67.0
I	ESTIMATED BB HEIGHT	12.2	12.2	12.2	12.2
J	CHAINSTAY LENGTH	17.0	17.0	17.0	17.0
K	FRONT CENTER	28.0	29.1	30.0	31.1
L	WHEELBASE	45.0	46.1	47.0	48.2
M	STANDOVER	28.5	28.4	28.3	28.3
N	AXLE TO CROWN	21.4	21.4	21.4	21.4
O	OFFSET	1.7	1.7	1.7	1.7
P	VERTICAL FORK TRAVEL	4.7	4.7	4.7	4.7
