Geometry

in
mm

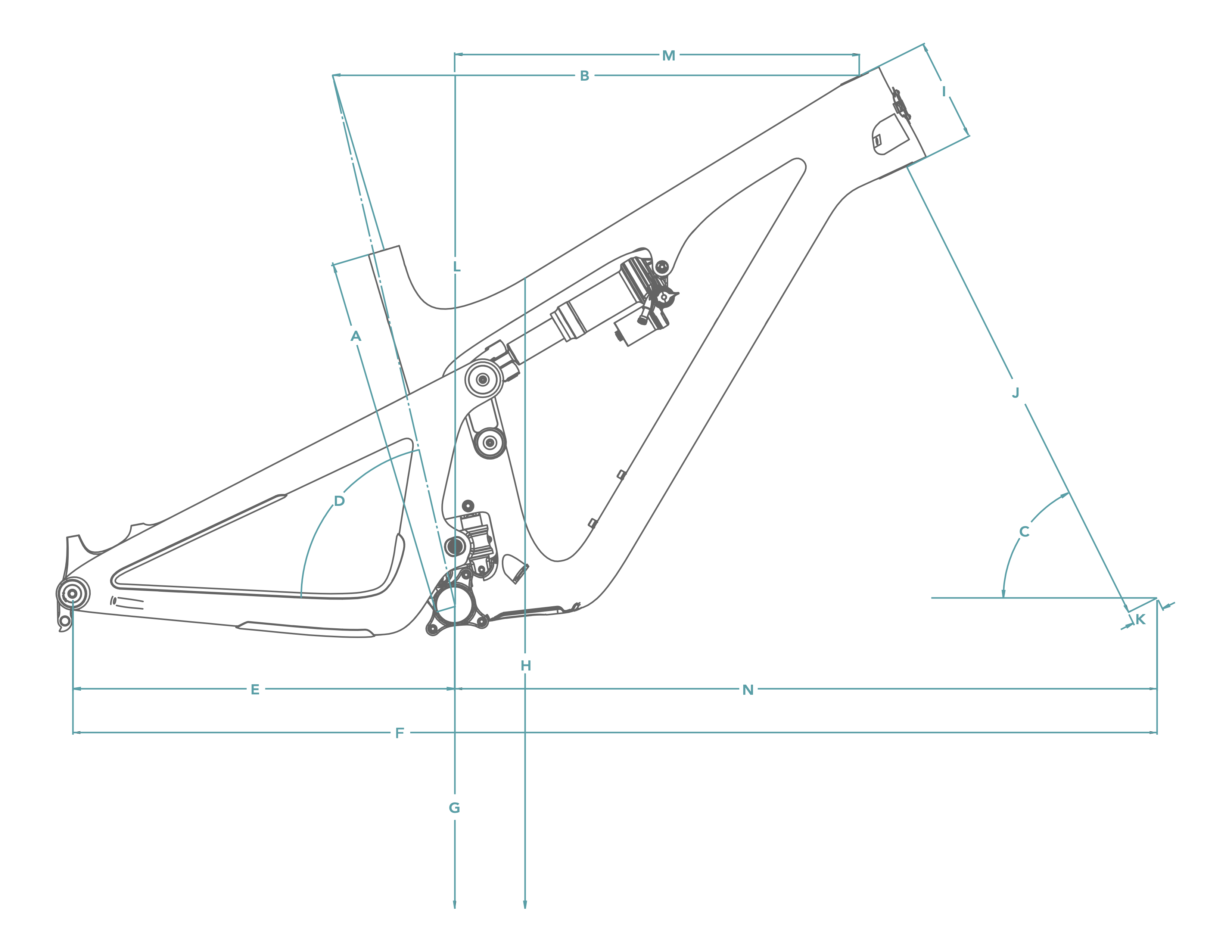

SB140 Geometry
XS SM MD LG XL
A SEAT TUBE LENGTH 14 15 16.1 17.7 19.5
B TOPTUBE LENGTH 21.1 22.3 23.5 24.4 25.5
C HEADTUBE ANGLE 65.5 65.4 65.4 65.4 65.4
D EFF. SEAT TUBE ANGLE 77.6 77.5 77.5 77.4 77.3
E CHAINSTAY LENGTH 17 17 17 17 17
F WHEELBASE 44.9 46.1 47.4 48.4 49.5
G ESTIMATED BB HEIGHT 13.3 13.3 13.3 13.3 13.3
H STANDOVER 27.5 27.7 27.8 27.9 28
I HEADTUBE LENGTH 3.8 4.3 4.5 5 5.4
J AXLE TO CROWN 21.2 21.2 21.2 21.2 21.2
K OFFSET 1.5 1.5 1.5 1.5 1.5
L STACK 22.8 23.3 23.5 23.9 24.3
M REACH 16.1 17.1 18.3 19.1 20.1
N FRONT CENTER 27.8 29.1 30.3 31.3 32.5

Fit Guide

  • xs
    4’10” - 5’3”
  • sm
    5’1” - 5’7”
  • md
    5’5” - 5’11”
  • lg
    5’10” - 6’3”
  • xl
    6’1” - 6’7”
